KADDEE NO.5 UNI COUPLERS 2PR HO AI1105
KADDEE NO.5 UNI COUPLERS 2PR HO AI1105
KADDEE NO.5 UNI COUPLERS 2PR HO AI1105
Couldn't load pickup availability

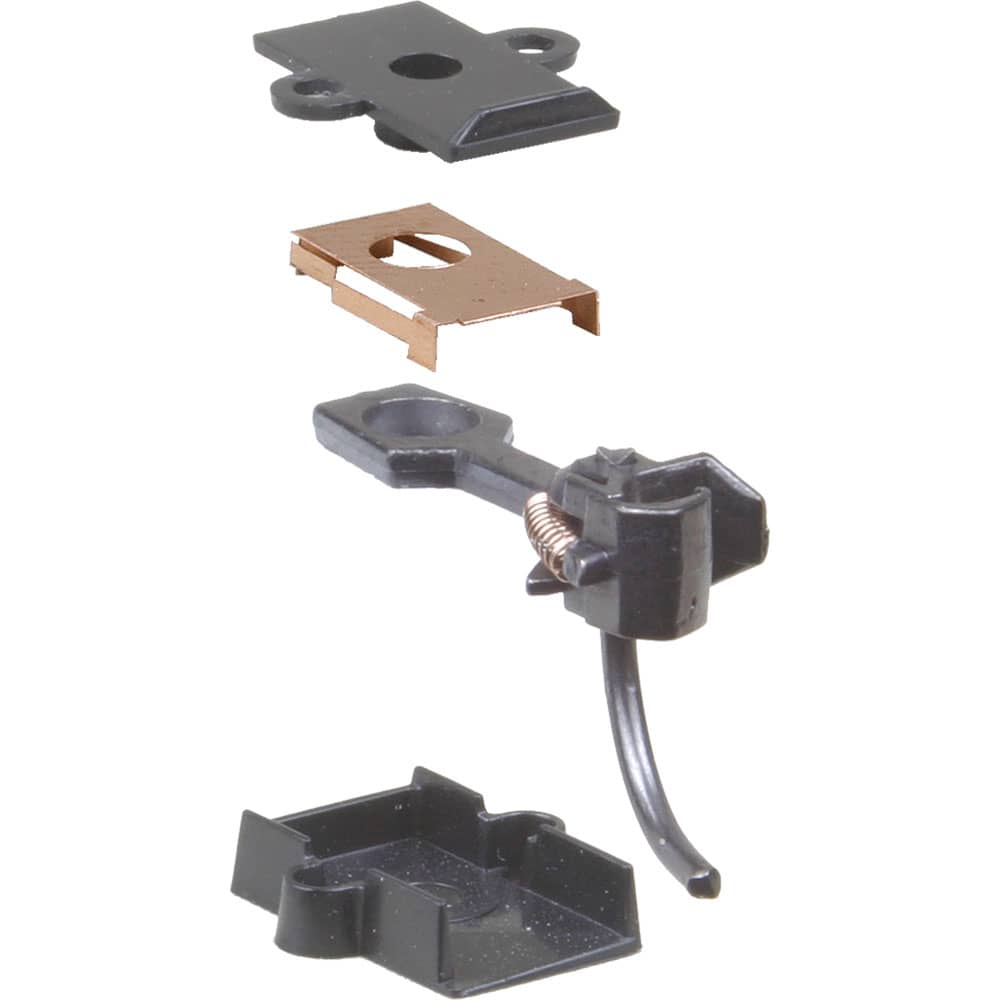

#5 (NO.5®) Metal Couplers – Medium Centerset Shank
This industry leading coupler features an all metal standard coupler, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The NO.5® Magne-Matic® Metal Coupler may be mounted with the included #232 Gearbox or with other manufacturers cast-on coupler pockets. The 148 Whisker® Coupler is equivalent to the NO.5® Metal Coupler. It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler. Two pair per package UPC: 765484000051 HO-Scale Package Includes:
- (2) Pair NO.5® Metal Couplers – Medium Centerset Shank
- (2) Pair #634 Centering Spring NO.5® Style
- (2) Pair #232 Gearboxes
- (2) #622 Knuckle Springs
NO.5® Metal Coupler Features:
| Material | – Metal |
| Shank Length | – Medium (9/32) (center hole to back of coupler head) |
| Coupler Offset | – Centerset |
| Knuckle Spring | – #622 |
| Centering System | – Standard Shank |
| Centering Spring | – #634 Centering Spring NO.5® Style |
| Head | – Standard Head |
| Works In Place of | – #58, #28, #118, #119, #148, #158, most medium centerset clone couplers |
| Works With | – #213, #232, #234, #242, most manufacturer cast-on draft gearboxes |
#232 Plastic Draft Gearboxes & Lids Features:
| Material | – Insulated Plastic |
| Dimensions | – 29/64L x 19/64W x 7/64H |
| Works With | – NO.5®, #58, 20-Series and all Whisker® Couplers |
Mounting Specifications:
| Mounting Height | – 29/64 |
| Centerline | – 25/64 |
| Trip Pin Height | – 1/32 |
| Center Hole | – 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
| Side Holes | – 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary) |
