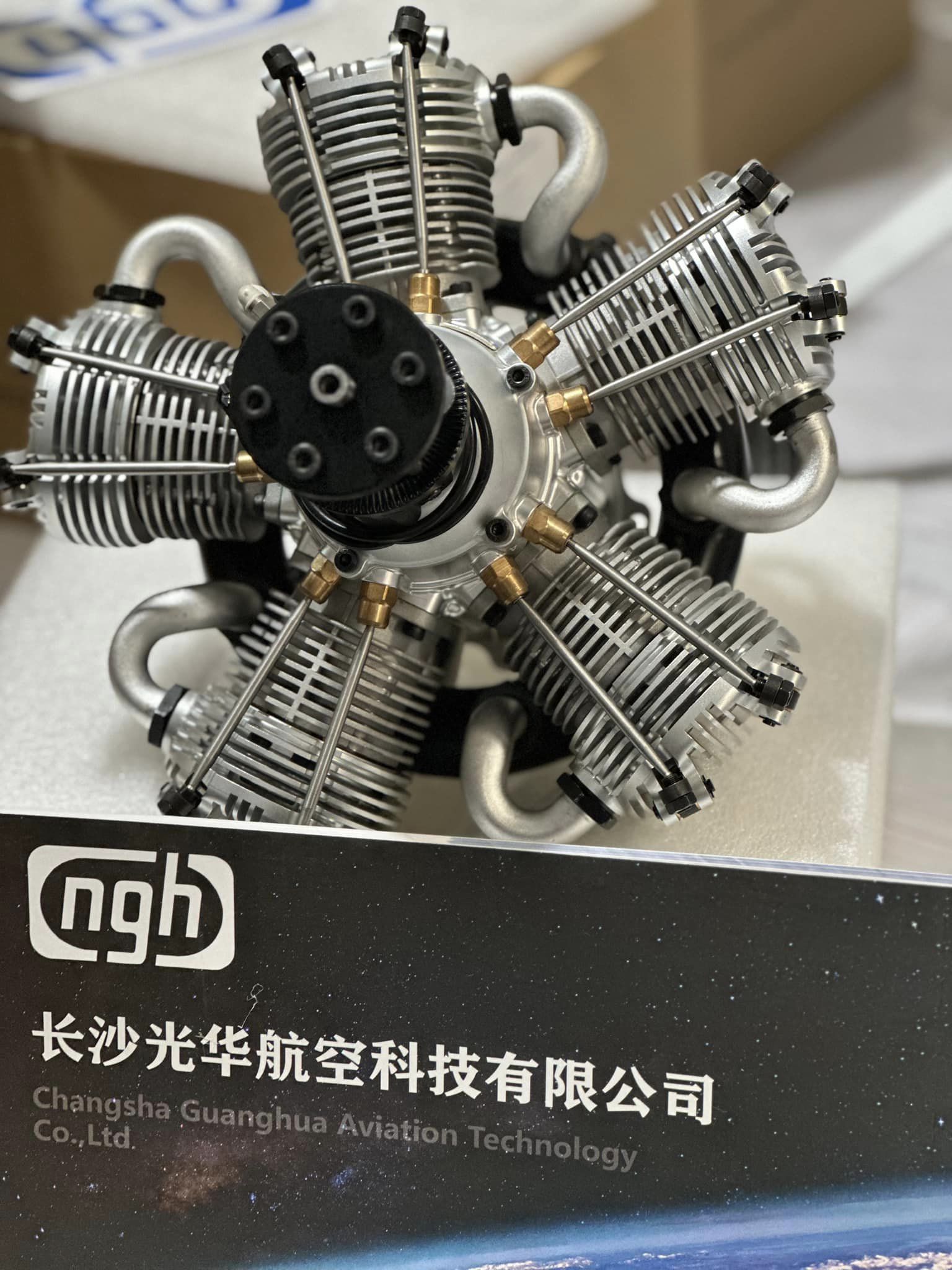

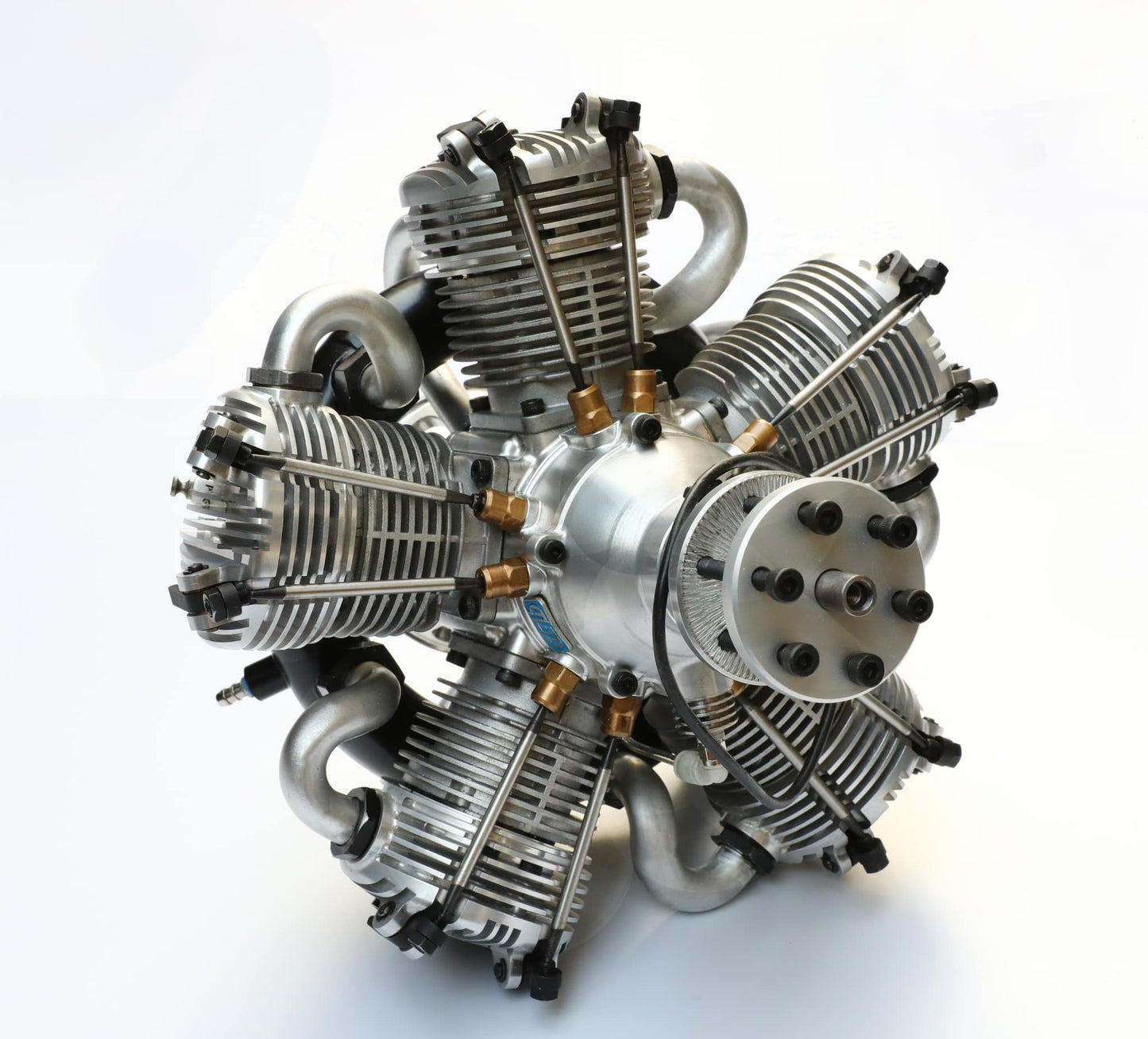

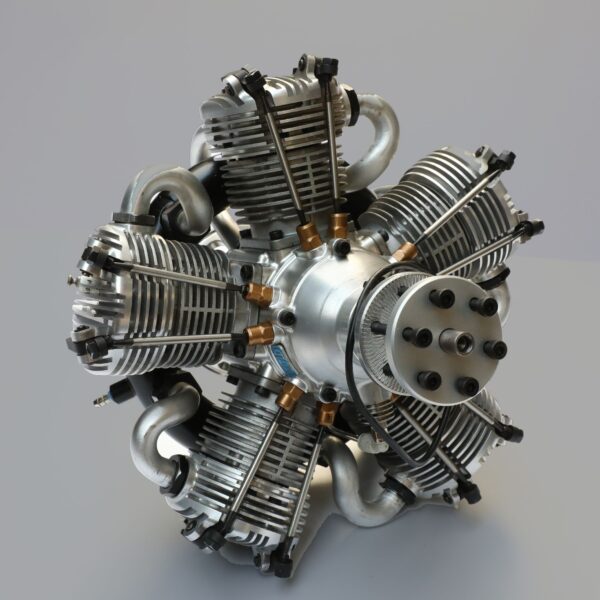

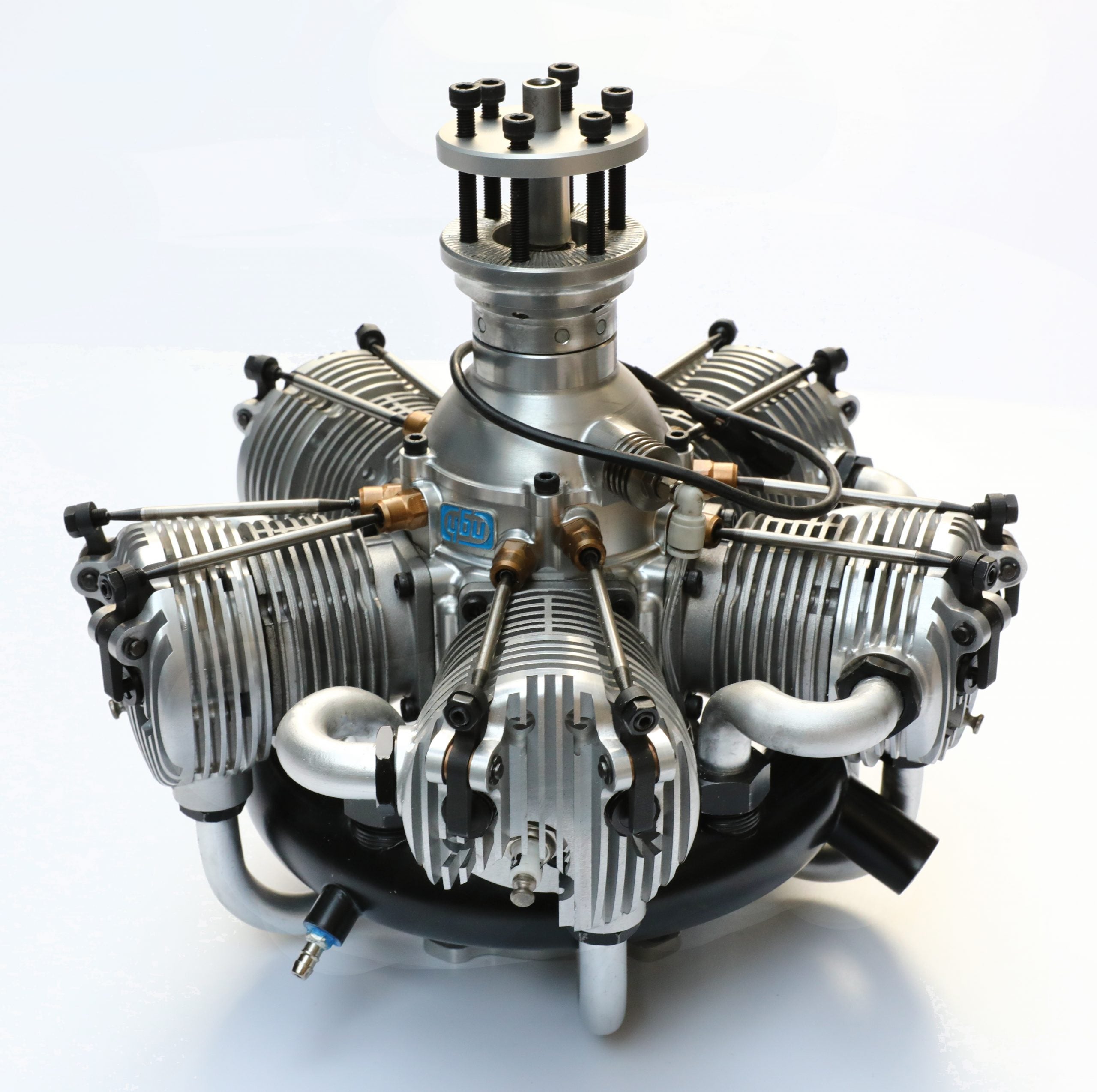

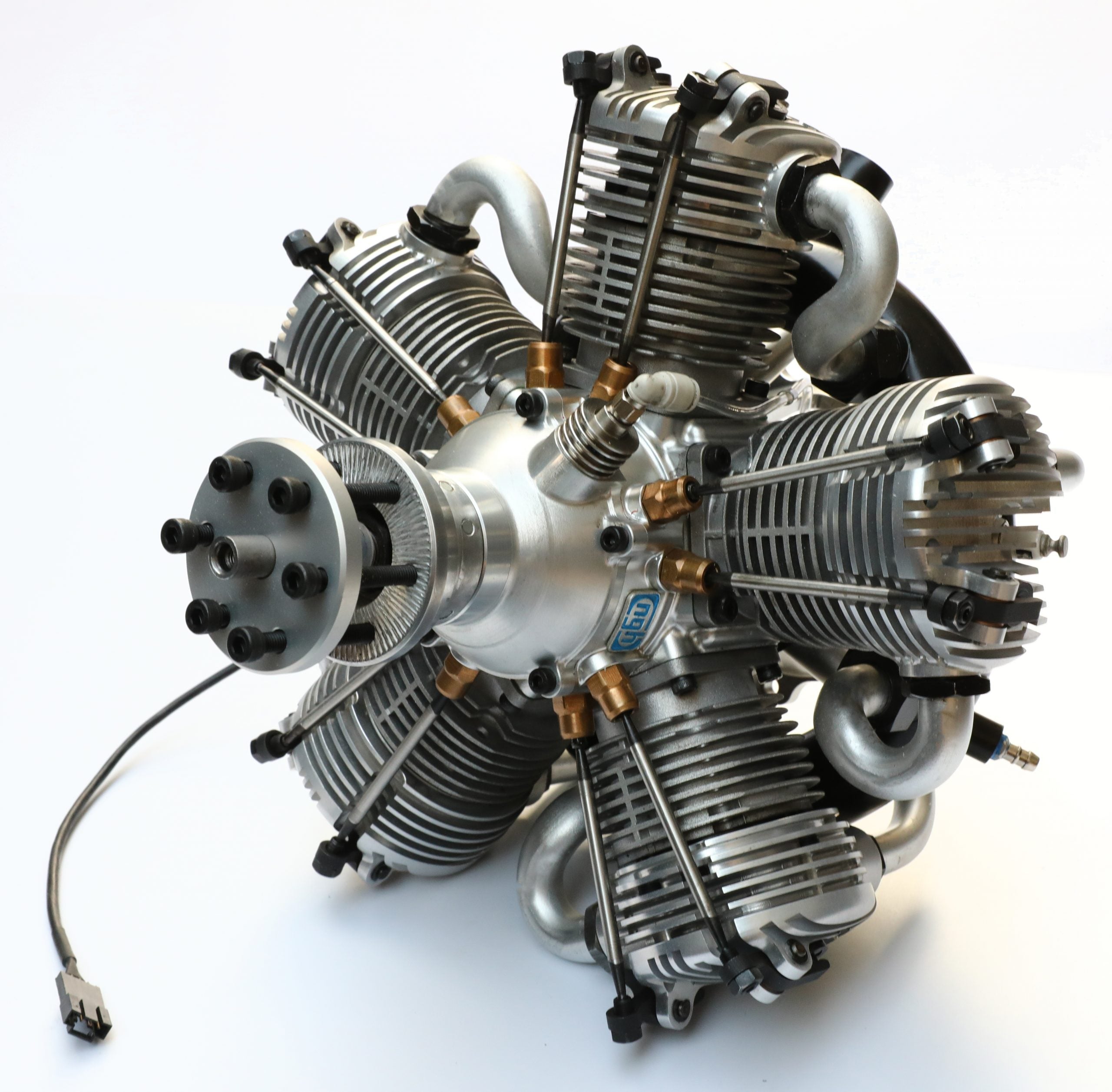

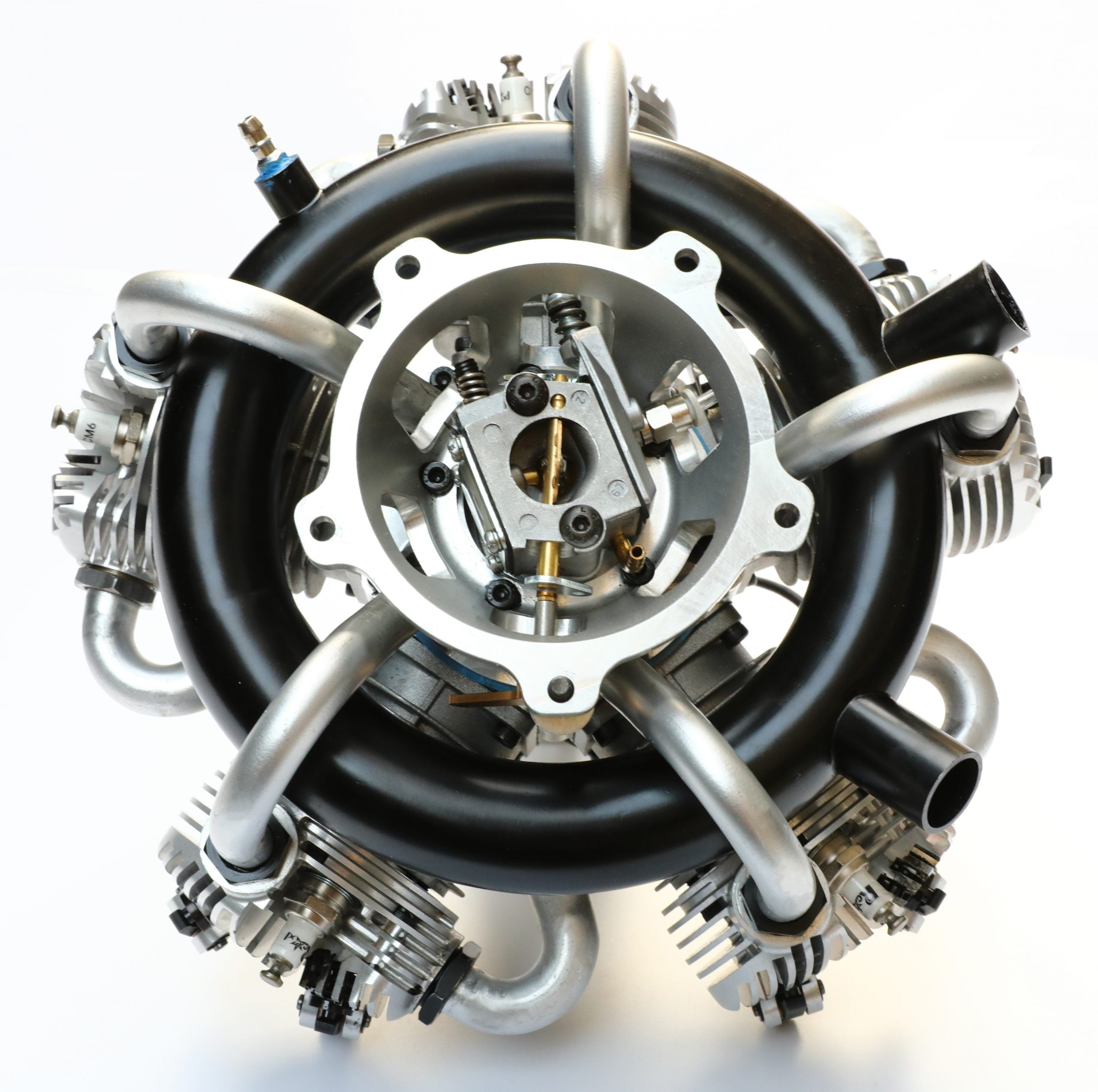

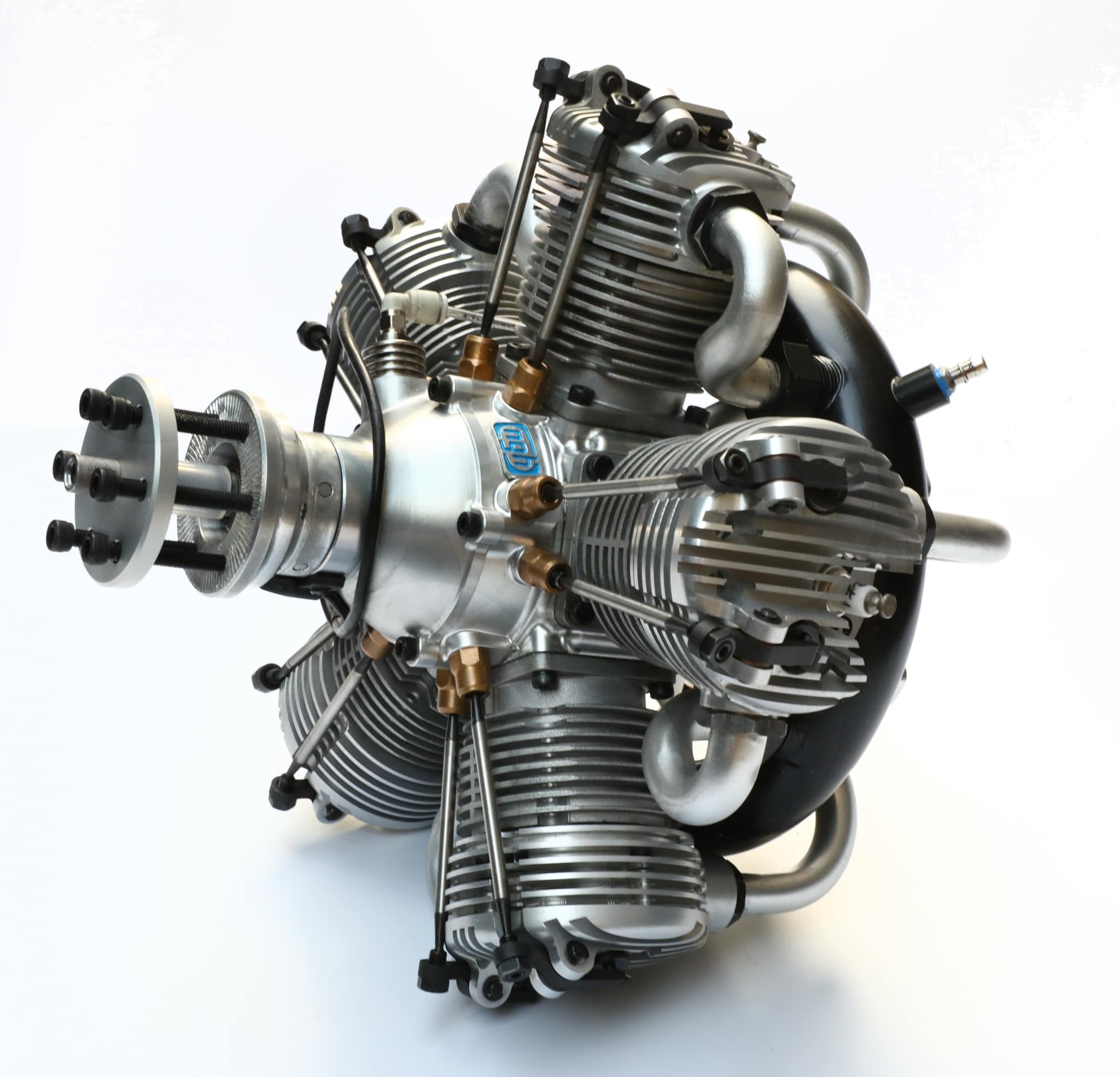

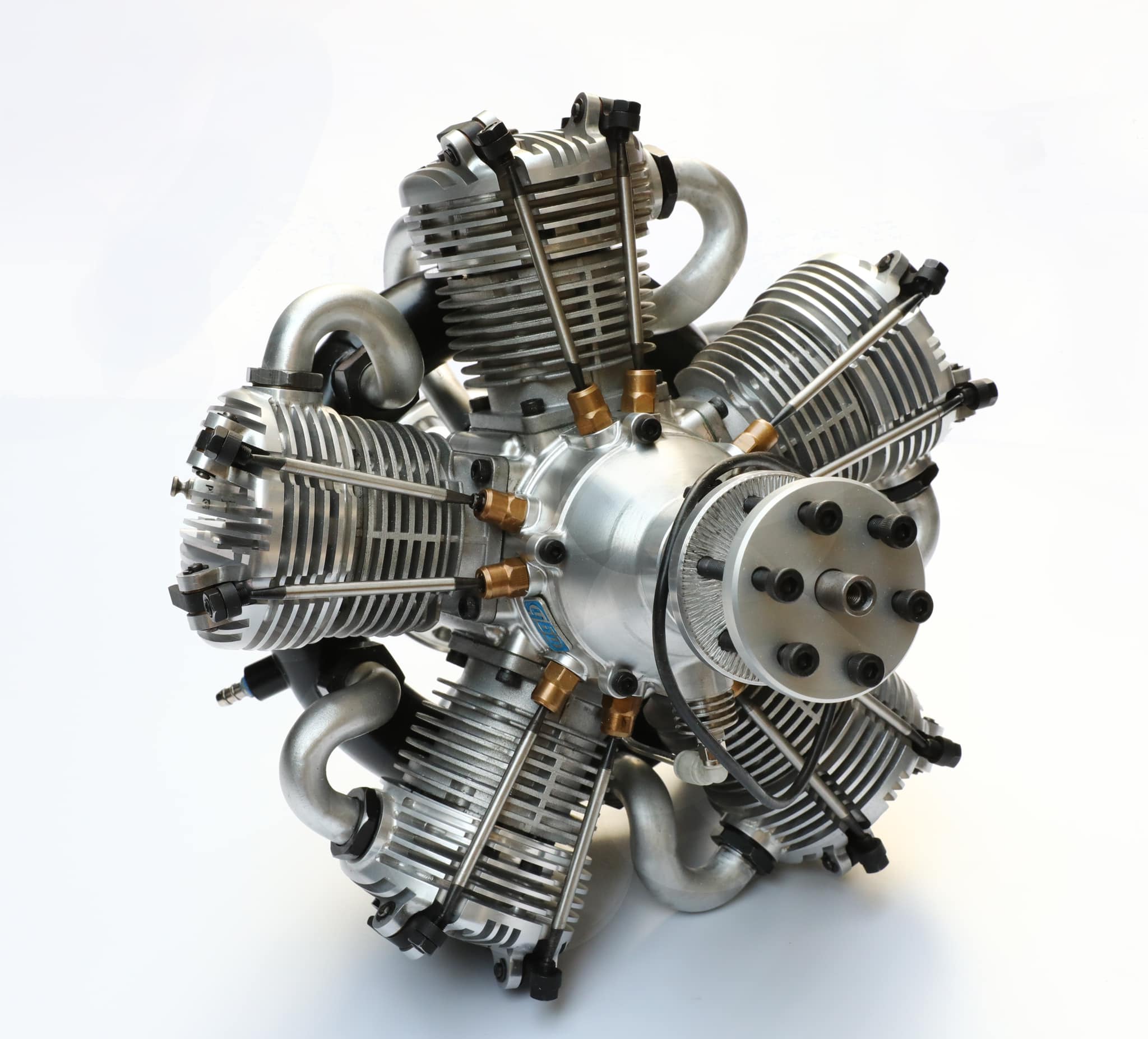

NGH 150cc 4 Stroke 5 Cylinder Radial Gas Engine with Electronic Ignition including exhaust collector ring

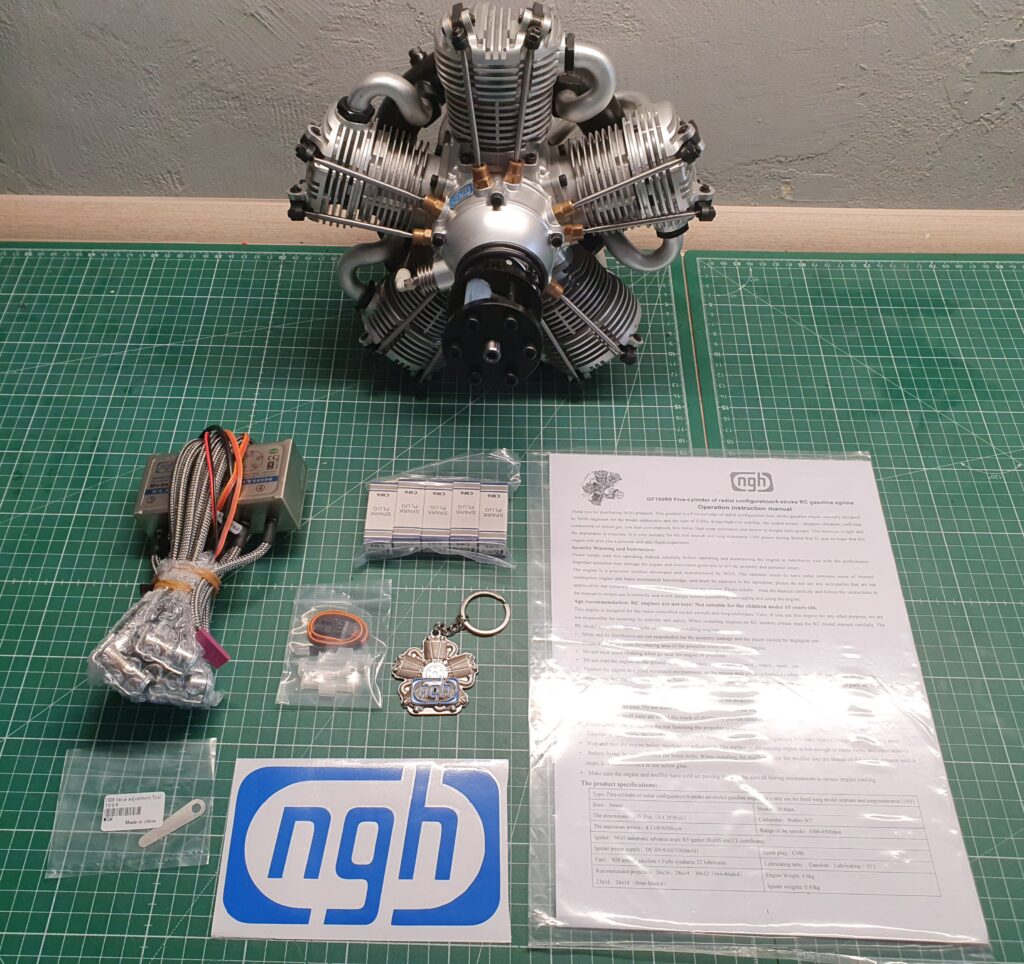

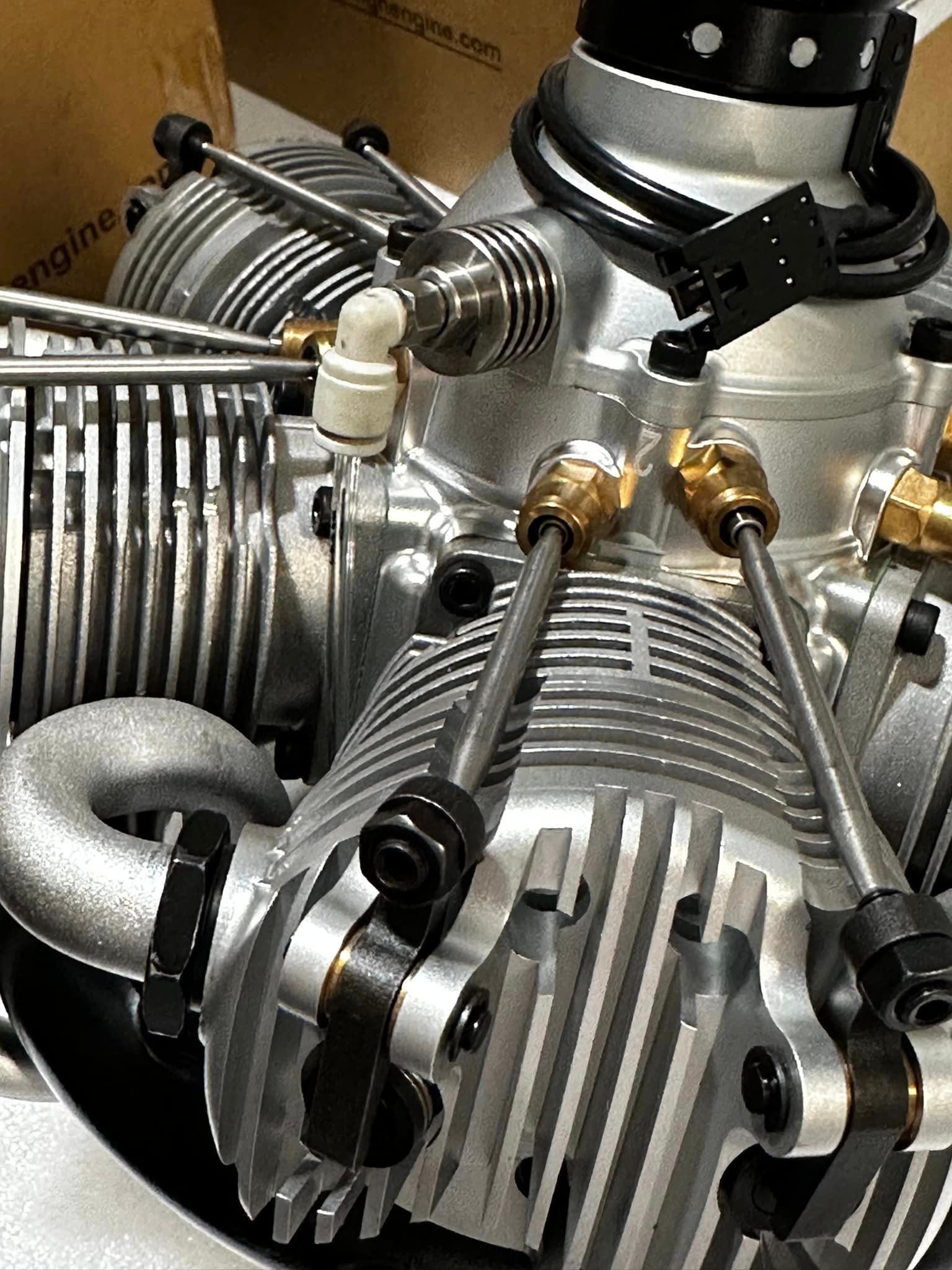

NGH GF 150 r5 5 Cylinder 149.35 cc Gas Engine with Electronic Ignition is supplied standard with a custom exhaust collector ring. The unique supercharging induction provides smooth high torque power and low vibration. The rear mounted WALBRO pump carburetor makes engine adjustment simple and convenient. The connecting rod is equipped with needle bearing for better lubrication. Dual piston rings (one lubricating oil ring and one sealing ring) provide better seal and lubrication. The cylinder liner is made of wear-resistant ductile. RCEXL automatic ignition timing system specially manufactured for NGH with a CM6 spark plug. High quality bearings throughout. Technical Specifications

• Displacement: 149.55cc 5 Cylinder. (5 x 29.91cc) Weight: 4.6kg
• Practical speed range: 1000-6500rpm
• Output power: 8.2HP/8000rpm
• Ignition power supply: DC 6V - 9.6V 1000mAh
• Bore: 36mm. Stroke: 29.4mm
• Power: 8.2 hp. Speed: 1000-6500 rpm

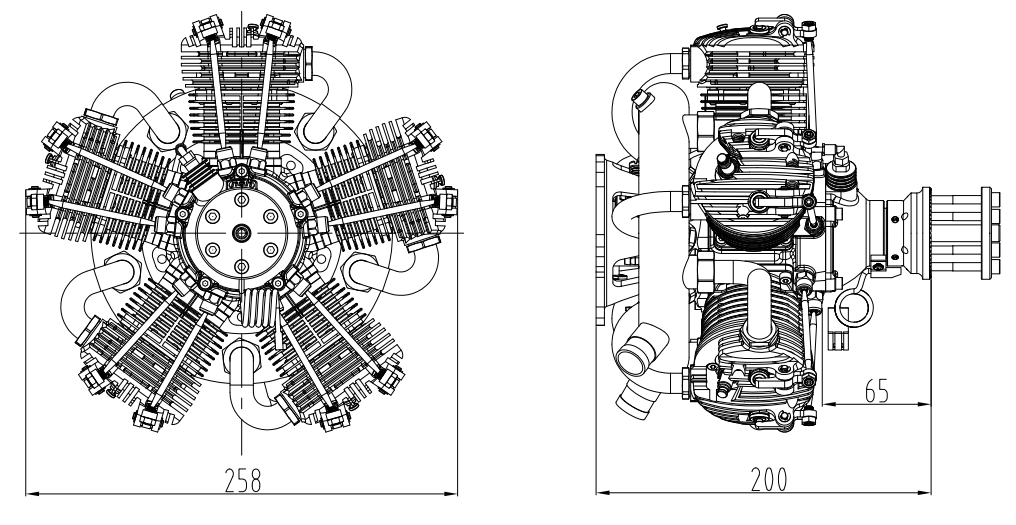

• Length: 200mm. Width: 258mm. Height: 258mm
• Propeller: 26x16, 28x14, 30x12 (two blade propeller) 23x16, 26x14 (three blade propeller)
• Fuel: 92 Octane unleaded gasoline + full synthetic lubricating oil
• Fuel ratio: gasoline: lubricating oil=35:1

GF150R5Five-cylinder of radial configuration/4-stroke RCgasolineegnine Type：Five-cylinderofradialconfiguration/4-strokeair-cooledgasolineengine （It™s only use for fixed wing model airplane and long-enduranceUAV)
