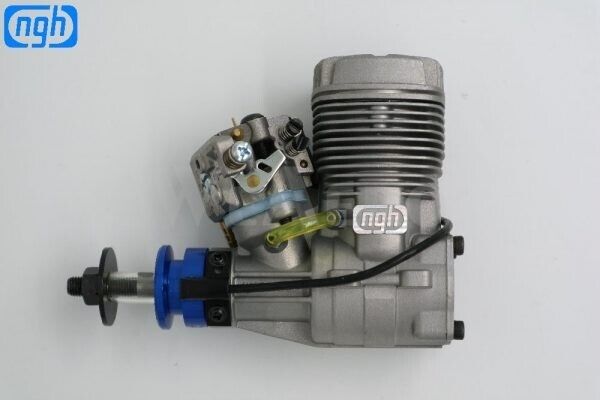

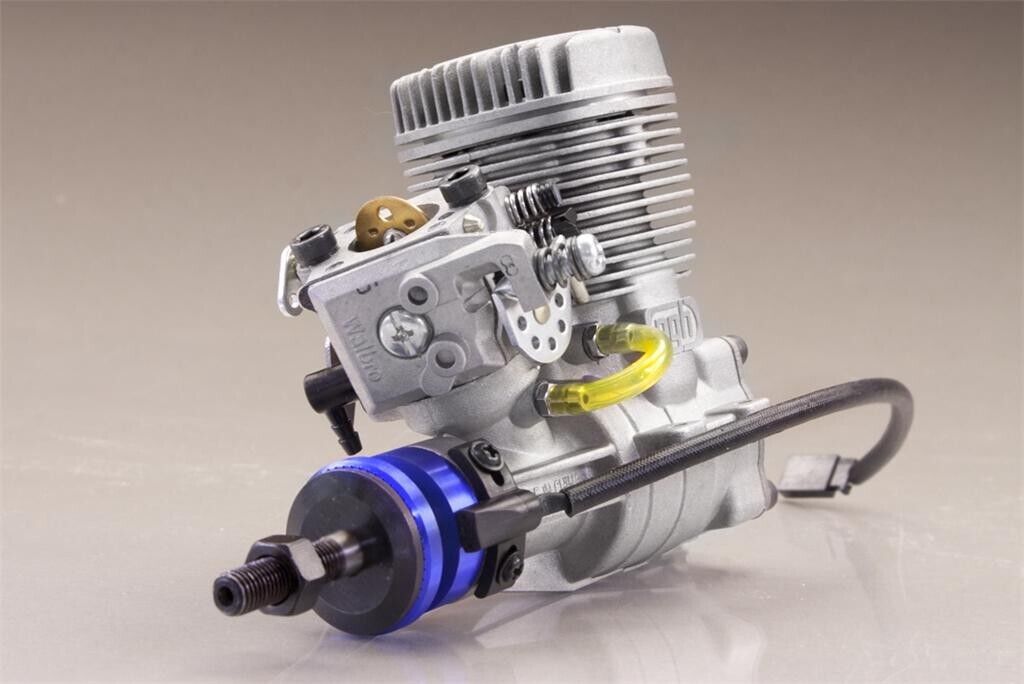

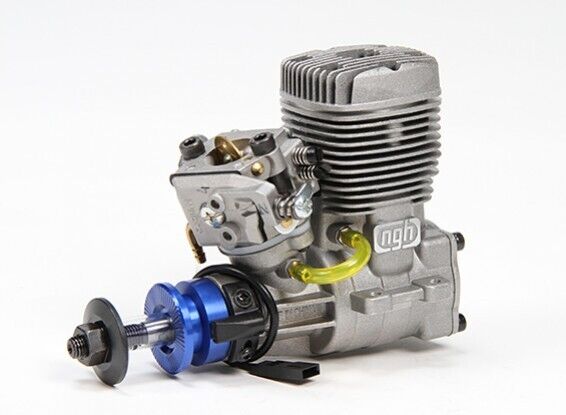

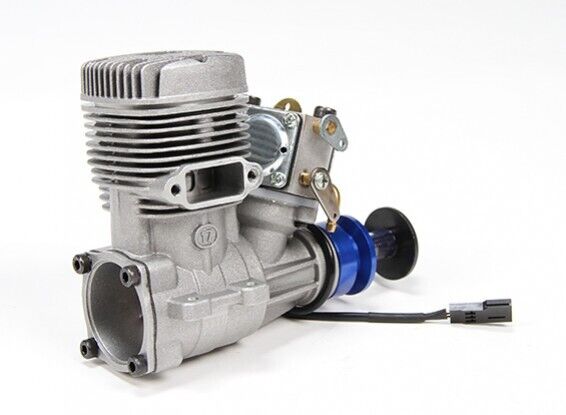

NGH - GT17 17CC 2-STROKE GAS ENGINE WITH MUFFLER

GT17 17CC (1.03CI) TWO-STROKE GAS ENGINE

NGH have become known for building quality gas engines that offer light weight, power and reliability at a very affordable price. They are manufactured and designed from scratch for model aircraft, they are not modified chainsaw or similar types of engines that have been in the past, they are purpose made.

This long awaited engine answers many questions facing modellers choosing a small petrol engine or are thinking they might like to convert there glow engine to petrol. It is neat, and built with you in mind. It™s traditional mounting and front mounted carby means it will just swap out with your existing glow engine. It has bags of power and excellent reliability. All this with the peace of mind of our backup service and spares support.

Features:

• Drop in replacement for models requiring a .90 class nitro engine
• Power of a .90 nitro 2 stroke but with far greater economy
• Front mounted Genuine Walbro carburetor for reliable running and easy tuning
• Traditional ˜beam™ engine mounting for simple ˜drop in™ installation
• RCEXL Ignition with automatic advancing system
• Suitable for use with NGH ˜Pitts™ style exhaust system
• Light weight design, powerful output and excellent reliability
• Machined Solid phosphor bronze con rod
• Forged crank shaft supported by dual roller bearings
• Attractive blue anodized prop hub
• Clean burning, no more oily residue on your model
• Standard single nut prop shaft allowing easy use of a wide range of props
• Purpose made, specifically designed from the ground up and optimized for gas powered RC planes

Specifications:

• Engine type: Single cylinder, 2-stroke, air-cooled
• Bore/Stroke: 29 x 25.6
• Piston displacement: 16.91cc = 1.03 CI

• Max. power: 2.1HP/9,300rpm

• Min. idle Rpm: 1800rpm

• Practical RPM: 1800-9.800rpm

• Ignition: Rcexl CDI with auto advance
• Spark plug: 1/4 x 32 Rcexl
• Carburetor: Walbro WT series
• Lubrication oil: 2 cycle Engine Oil + Cool Power fully synthetic lubricants.
• General use fuel: 25:1

• Propellor range: 13×8 / 14×8 / 15×8 / 16×6-8

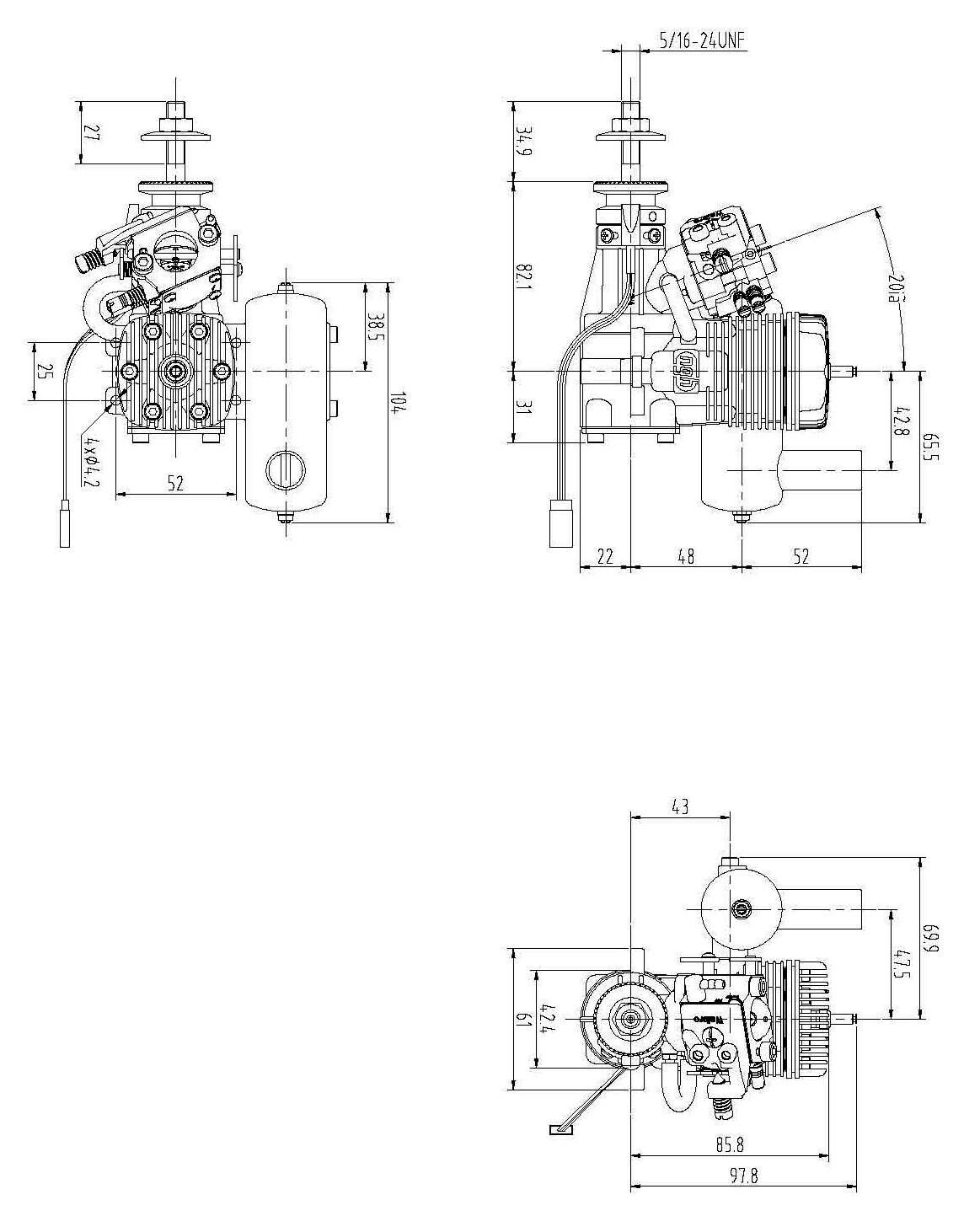

Dimensions/Weight:

• Length backplate to propeller boss: 103.1mm
• Mounting: 52mm x 25mm
• Height from crank centreline to spark plug tip: 100mm

• Weight: 850g (including ignition and muffler)

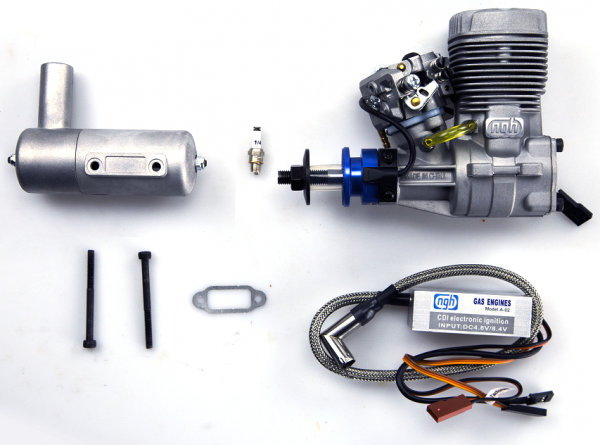

Includes:

• NGH GT17 17cc Two-Stroke Engine
• Muffler
• NGH ignition system
• Spark plug
