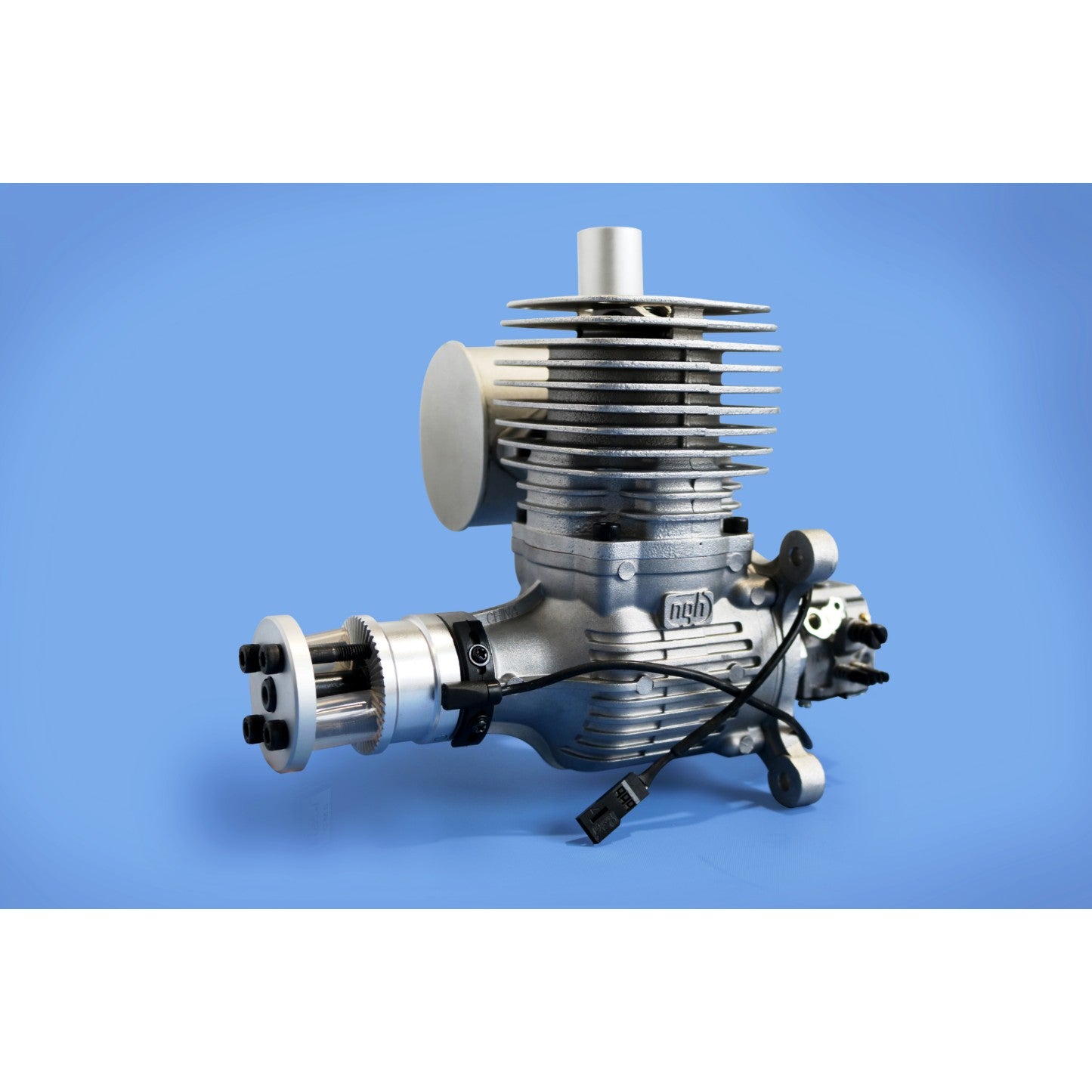

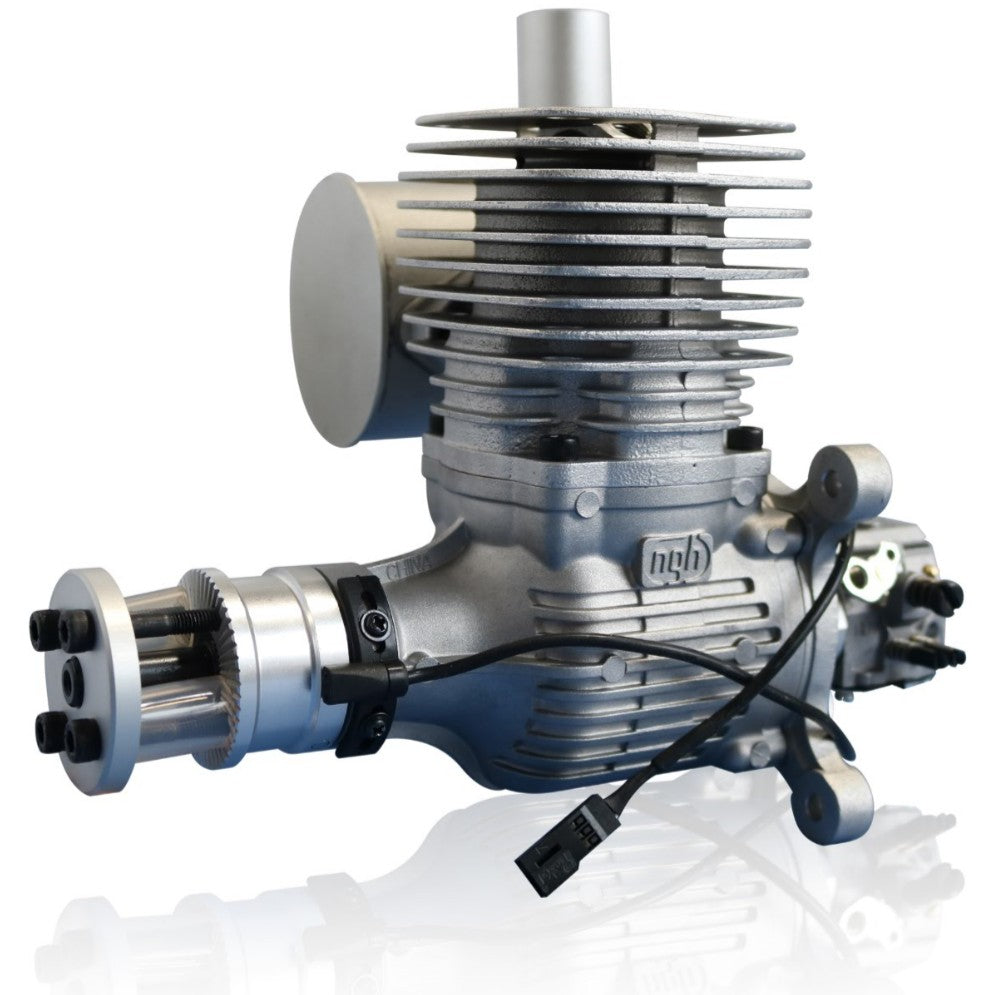

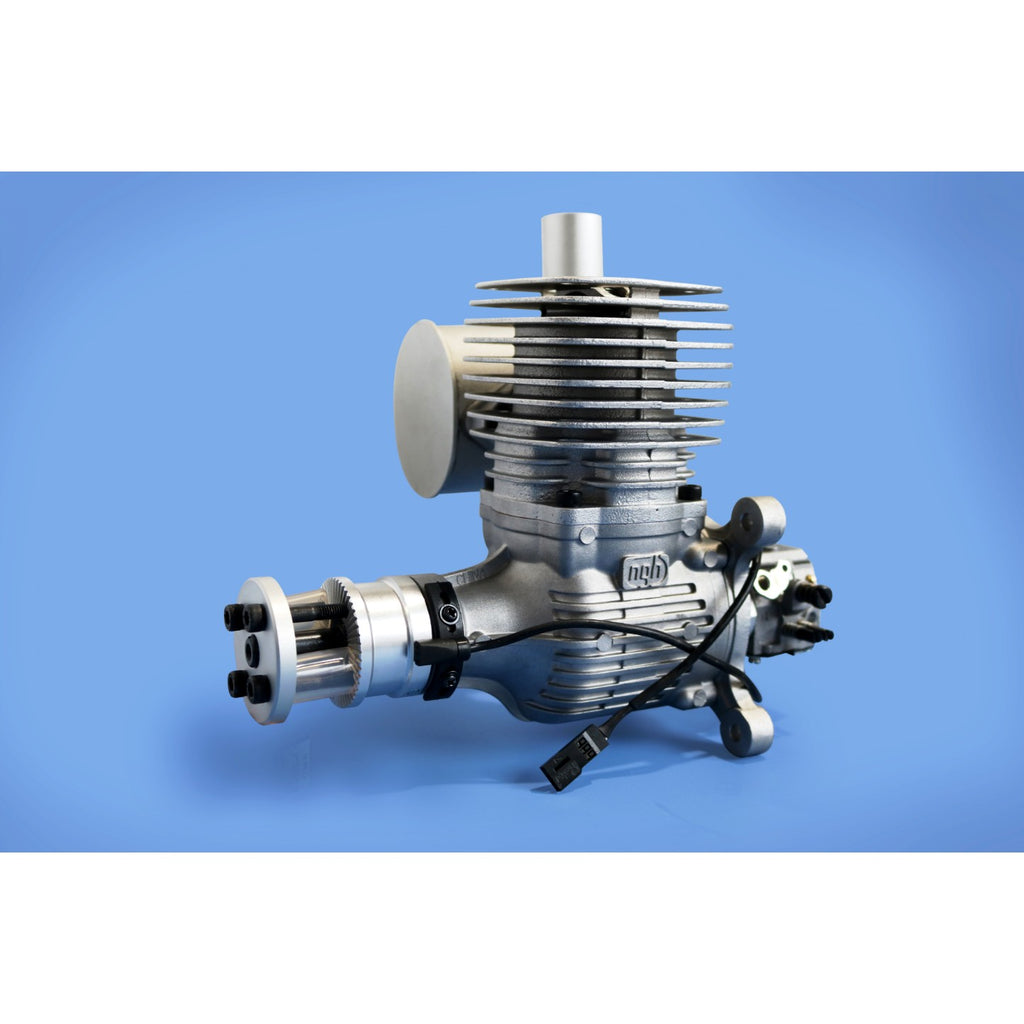

NGH - GT65 R - 65cc Rear Intake Side Exhaust Gas Two-Stroke Engine

NGH - GT65 R - 65cc Rear Intake Side Exhaust Gas Two-Stroke Engine

NGH Engines are gaining a well-deserved reputation for
performance and value. The ongoing development from NGH makes these some of the
best on the market today. The NGH GT65R is a solid performer with plenty
of power and excellent reliability.

The engine has a Rear mounted carby allowing it to be
installed into most models with ease. No bulky carb hanging off the side like
some other models on the market and providing improved air flow without the
turbulence. The side exhaust allows a side mounted engine allowing placement of
the exhaust in the usual under body cavity.

Known for building quality gas engines that offer light
weight, power and reliability at a very affordable price. They are manufactured
and designed from scratch for model aircraft, they are not modified chainsaw or
similar types of engines that have been in the past, they are purpose made.

Also included is a set of stand-off engine mounts and a 'can
style' muffler that is reversible.

Tired of ugly chain saw conversion model airplane engines
shaking your model to death? Install this gorgeous miniature gasser and you'll
have a lightweight, smooth, and powerful engine you'll be proud to show off.
Best of all, it saves you money on fuel because it consumes inexpensive
gasoline with oil premix instead of glow fuel.

This smooth running and powerful 65cc. This super reliable
engine is great with a low idle due to the CDI spark plug ignition instead of a
glow plug. Perfectly suited for propellers ranging from 23x8 through 24x10.

All you need to add is battery for the included ignition
module (4-cell NiCd/NiMh - sold separately),

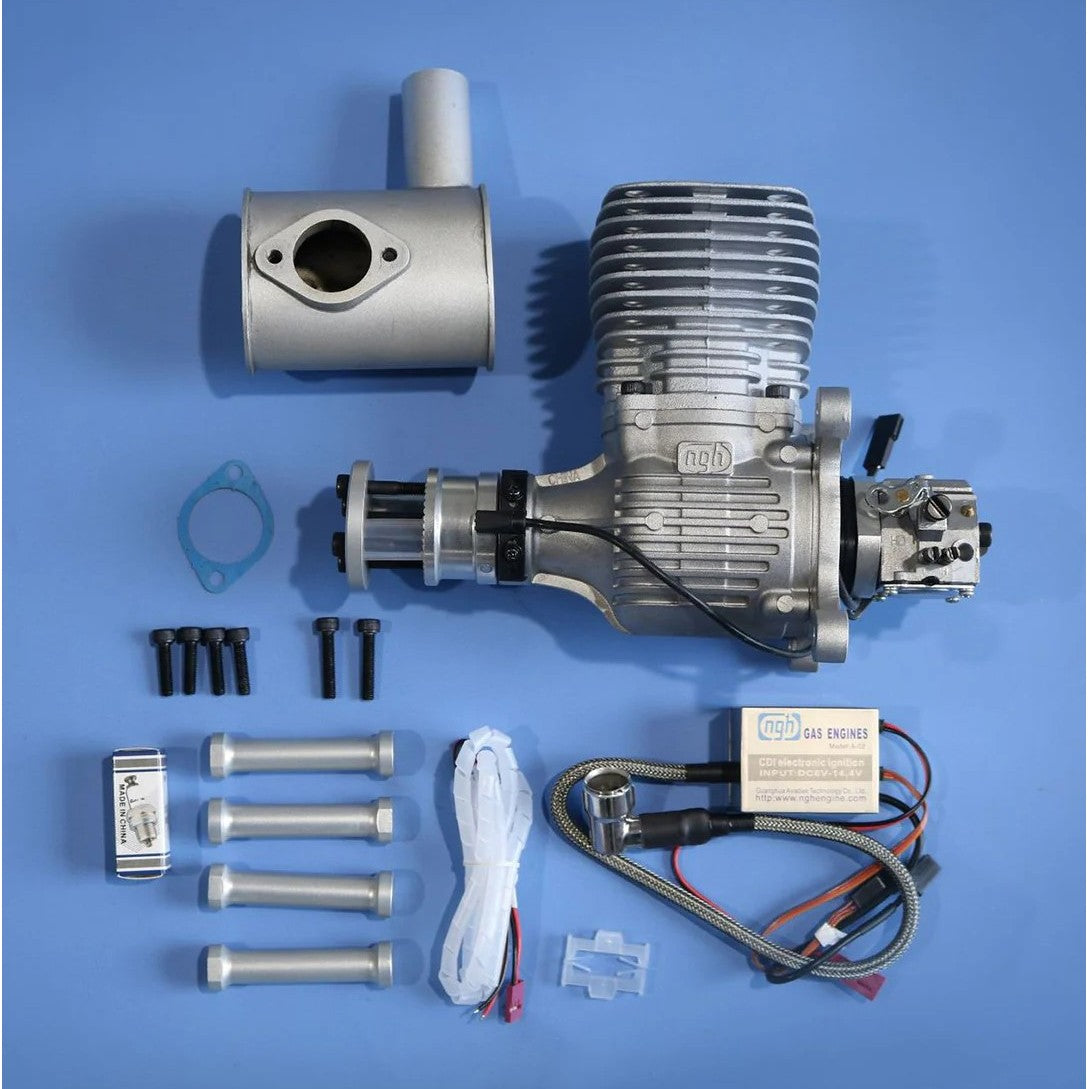

Includes:

• NGH GT65R 35cc Two-Stroke Engine
• Reversible Muffler
• NGH ignition system
• CM6 Spark plug

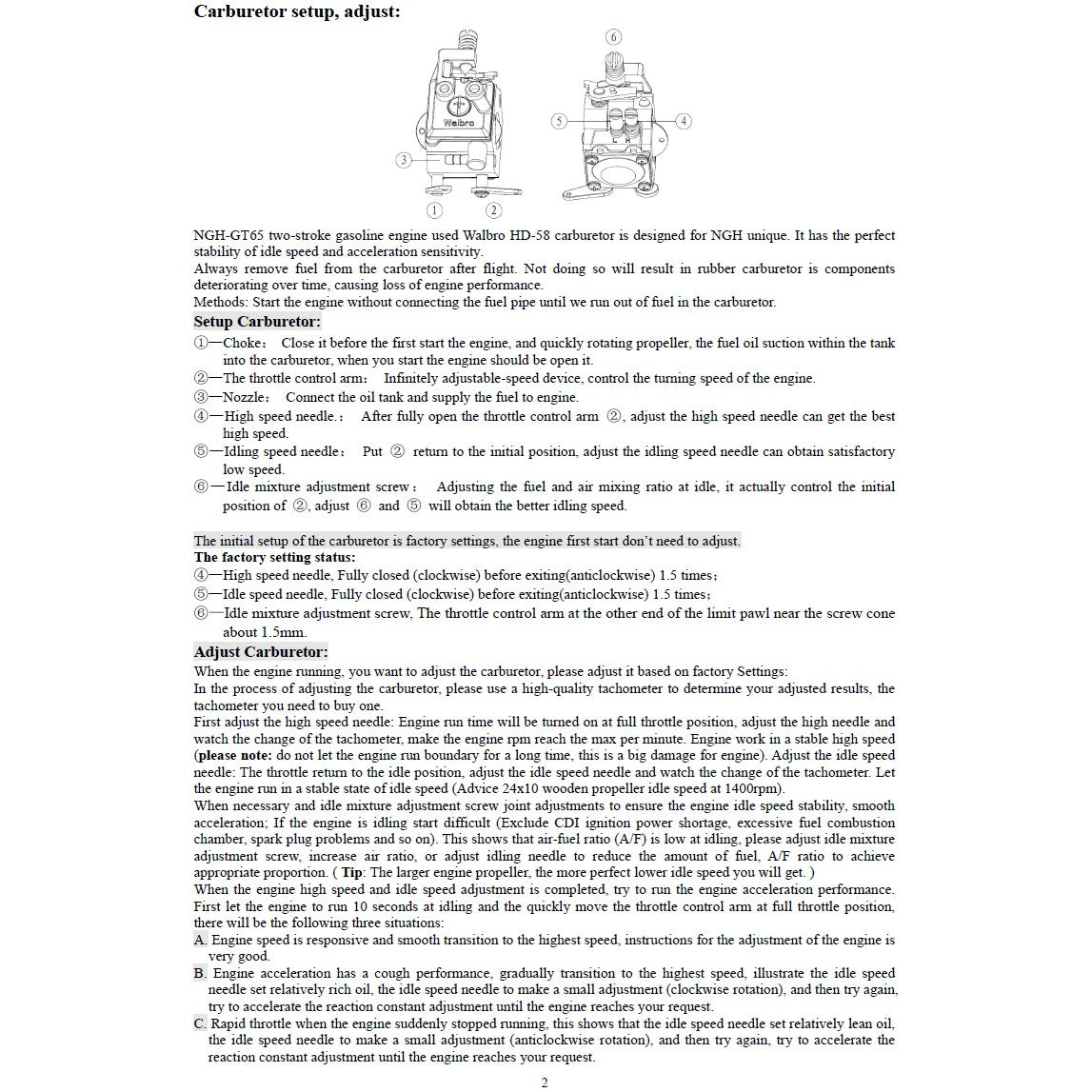

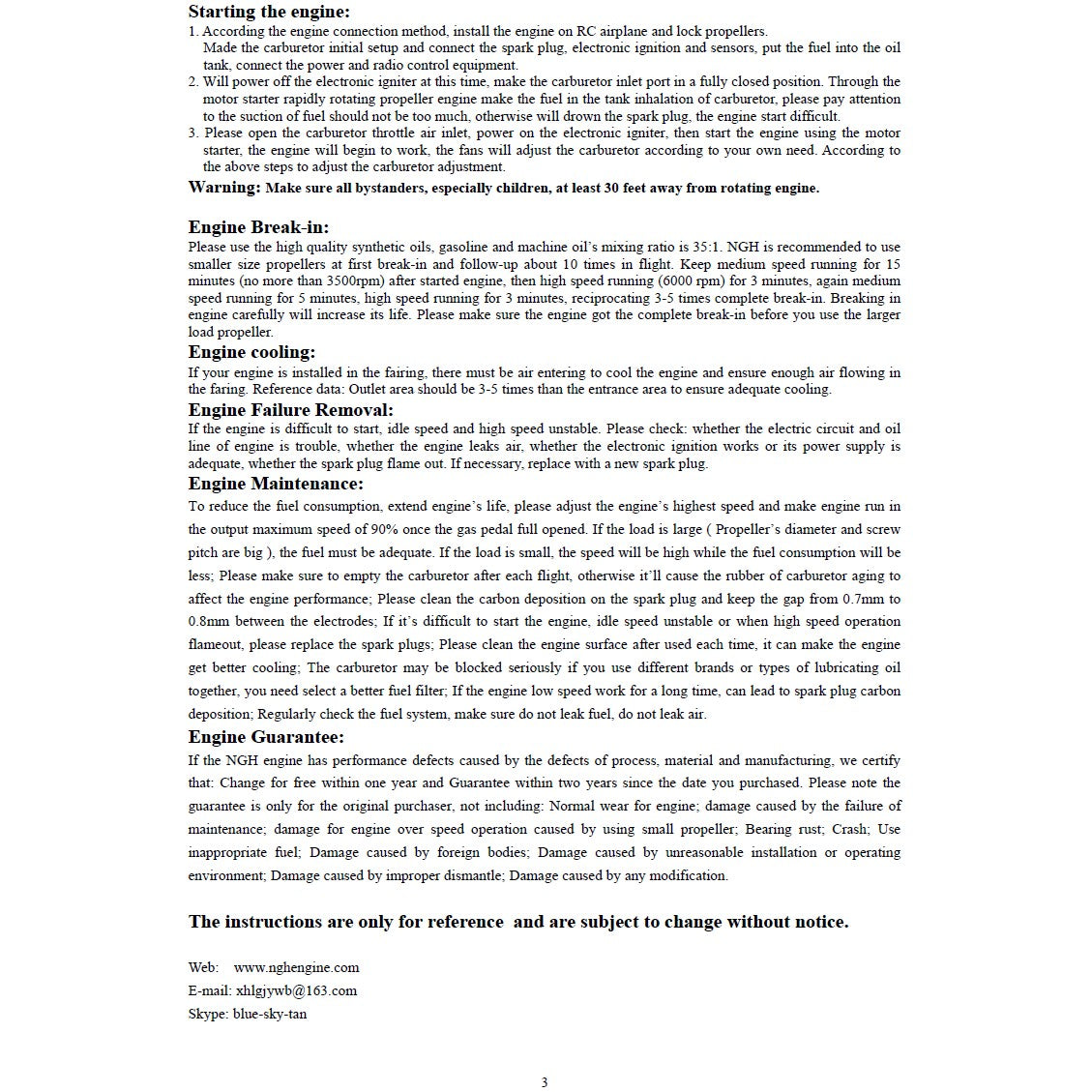

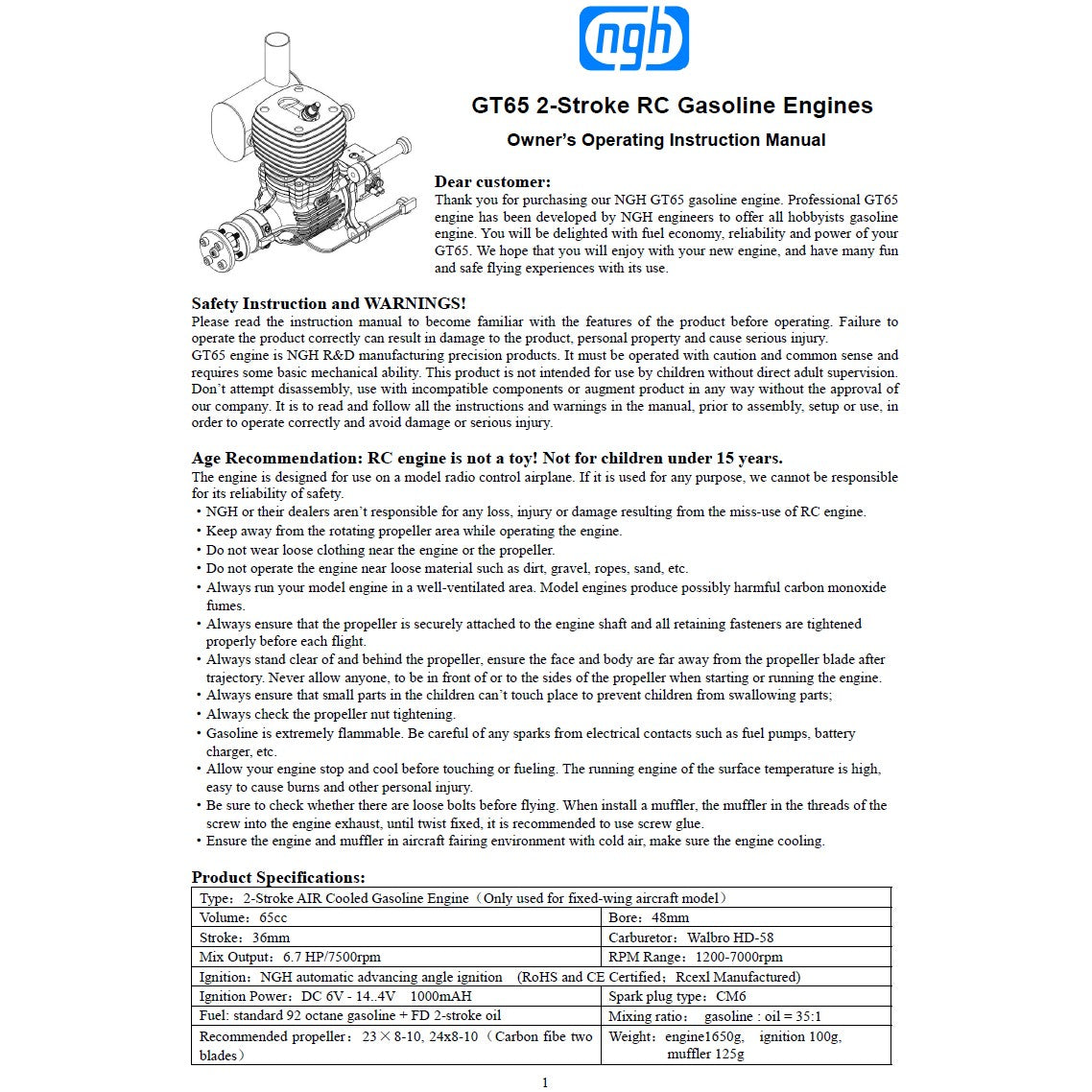

• Instruction manual
• 4 Stand-Off mounts Mounts

GT65 features

Rear mounted Walbro carburetor, reliable operation and
simple tuning.

Precision forged connecting rods with needle roller bearings

RCEXL Spark Plug CM6

Forged crank shaft supported by dual bearings

RCEXL Ignition with automatic advancing system

Light weight design, powerful output and excellent
reliability

Clean burning, no more oily residue on your model

Purpose made, specifically designed from the ground up and
optimized for gas powered RC planes

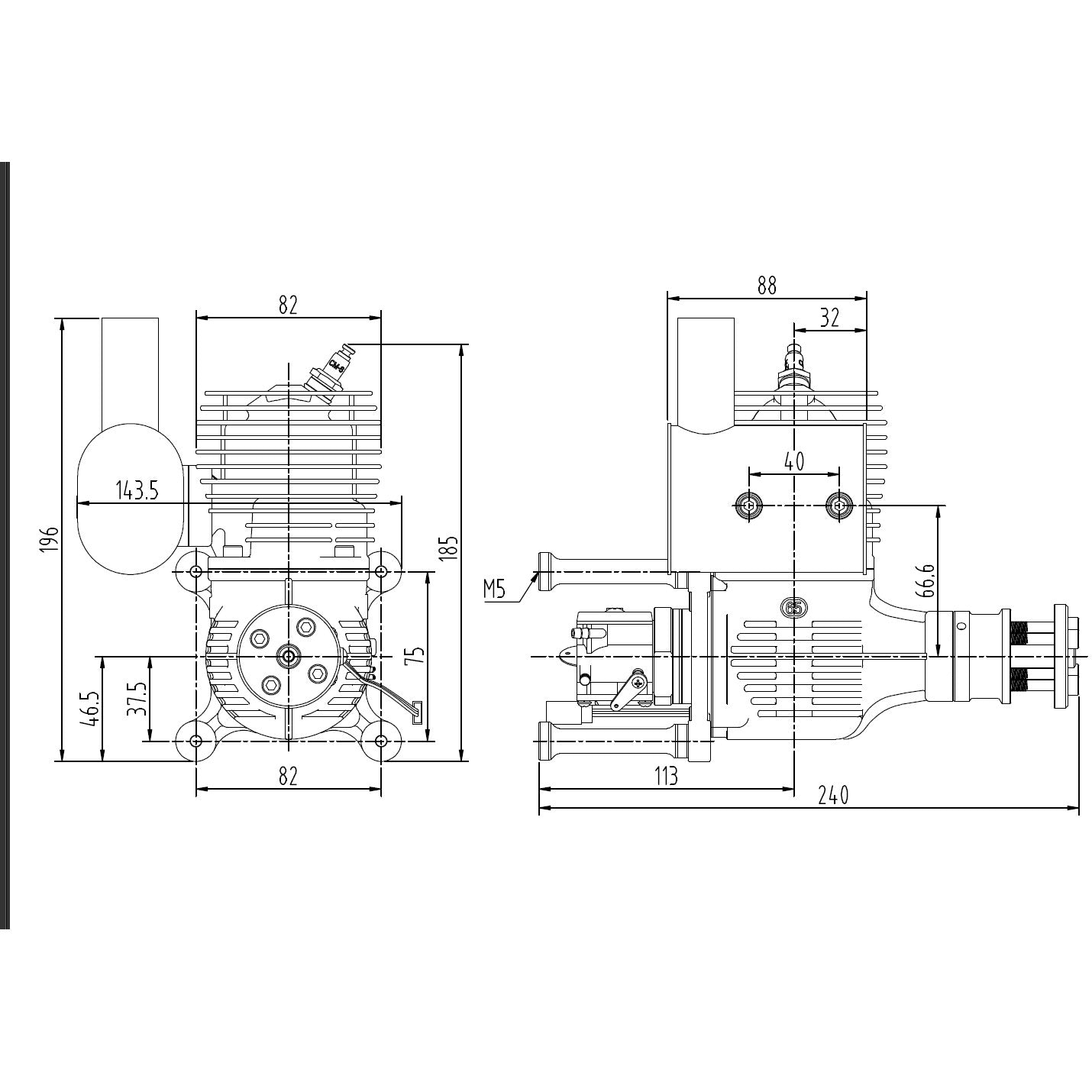

GT65 Technical Parameters

• Displacement
• Bore:48mm
• Stroke:36mm
• Practical Speed Range::2000-7000rpm
• Output Power: 6.7HP/7000rpm
• Static Thrust:16KG
• Fuel: Unleaded Gas/Oil mix 35:1+ Cool Power fully synthetic
  lubricants
• Compression 11:1
• Weight of Engine :1650g
• Weight of Exhaust : 125g
• Weight of Ignition :100g
• Ignition Power :DC4.8V-8.4V 1000mAH
• Spark plug type : CM-6
• Recommended Propeller : 23X8-10
  24X8-10 (Two-bladed)
